Integrate GCS

  • Reference: T21-R20

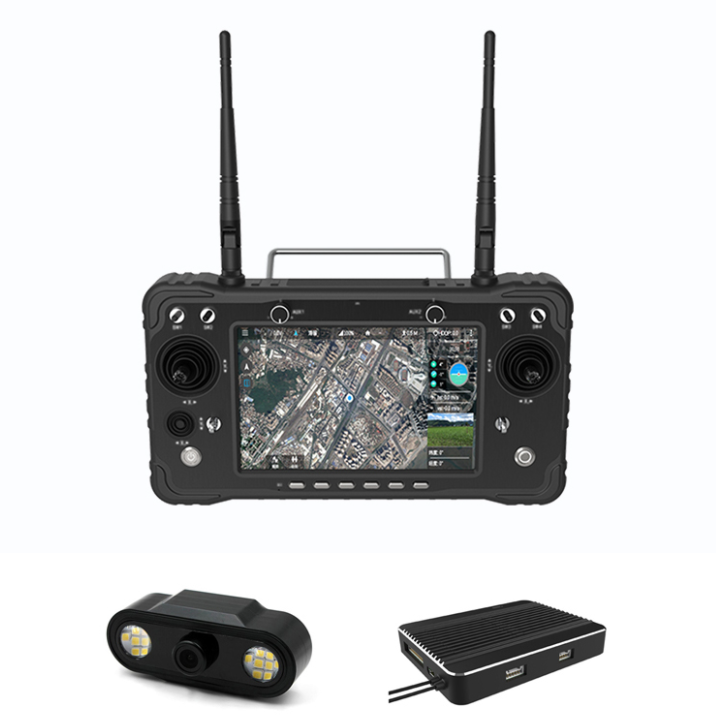

T21 integrated with all you need to operate the drone in field.

Built in telemetry with 900mHz range up to 37km.

Radio control system perfectly replace the traditional RC unit and even extend range up to 37km.

Perfect for open source flight controller software in the market such as Mission Planner and QGC.


Transmitter System

Sbus channel Dual sBus programmable w/HID input
Channel 16
Receiver R20
Video link Optional connect external

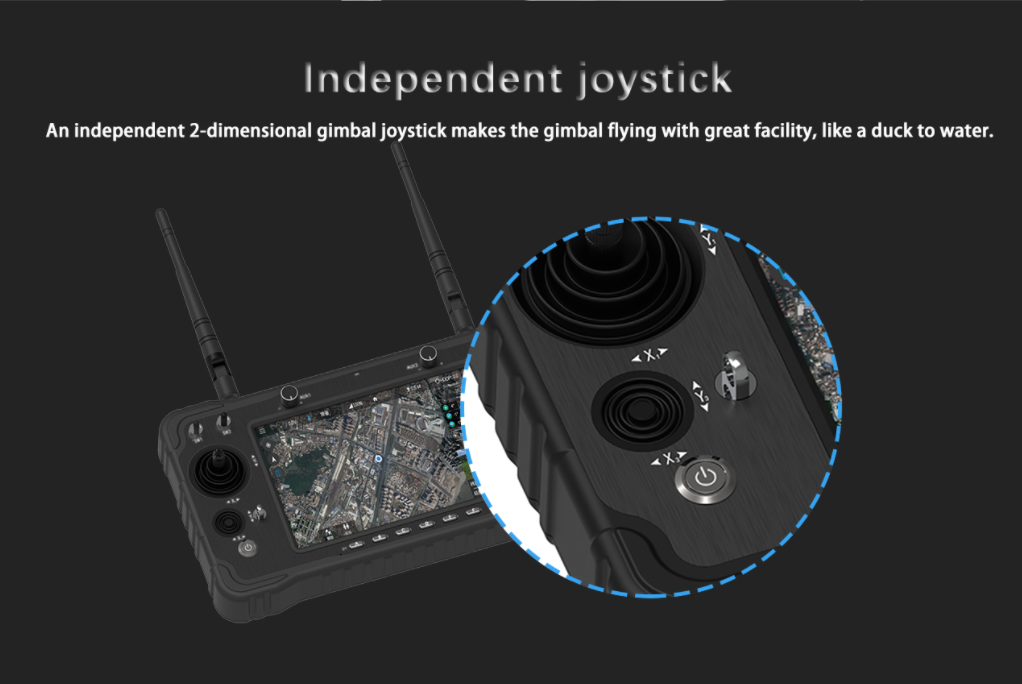

Control stick Mode I / Model II / Auto center
Aux channel Main stick x 2
Aux stick x 2
3-position switch x 4
Dial switch x 2
Push switch x 2
Frequency 902 - 928mHz
Control range 5~40KM
RF power 1w adjustable
Latency 40ms
Battery capacity 3.7V/7500mAh
Endurance 4 hours
Display 8" IPS, 350CCD
Resolution 1270x720
Processor Intel Cherry Trail Z8350
Memory 4GB DDR3
Storage 64GB SSD
OS Win10/Android7.1
Control 10 points touch screen

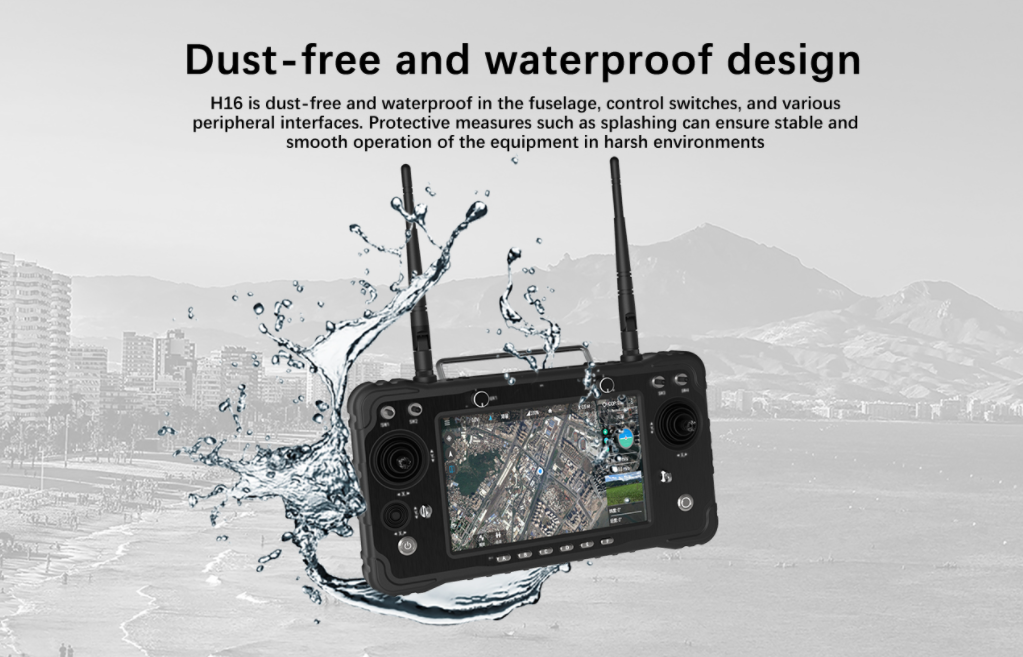

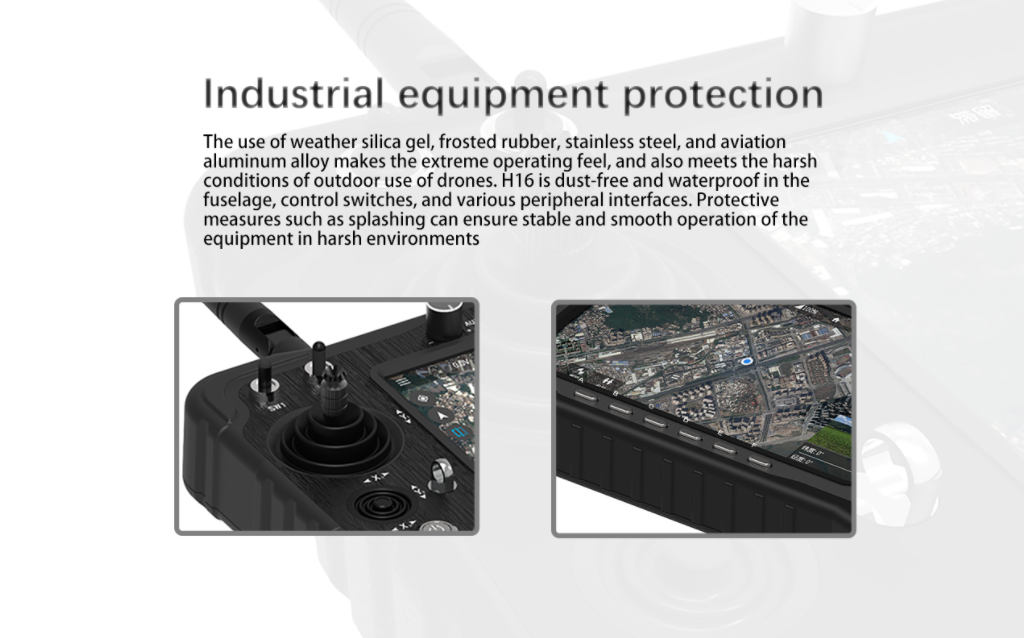

Water resistance IP67
External port TF slot, USB, 4G card slot
Antenna 2db rubber
Charging port Type C
Weight 1020g
Measurement 300x160x40 mm
Packing dimension 370x285x105mm

R20 receiver

Frequency 902-928mHz
Working voltage 7.4~12V
Current 100mA (12V)
Power consumption 100mV~1W
Serial channel TTL x 1
sBus channel sBus x 2
Power connector XT30
Antenna 2db rubber
Weight 43g (w/o antenna)
Measurement 53x40x14 mm
Working environment -10~+50℃
