• New

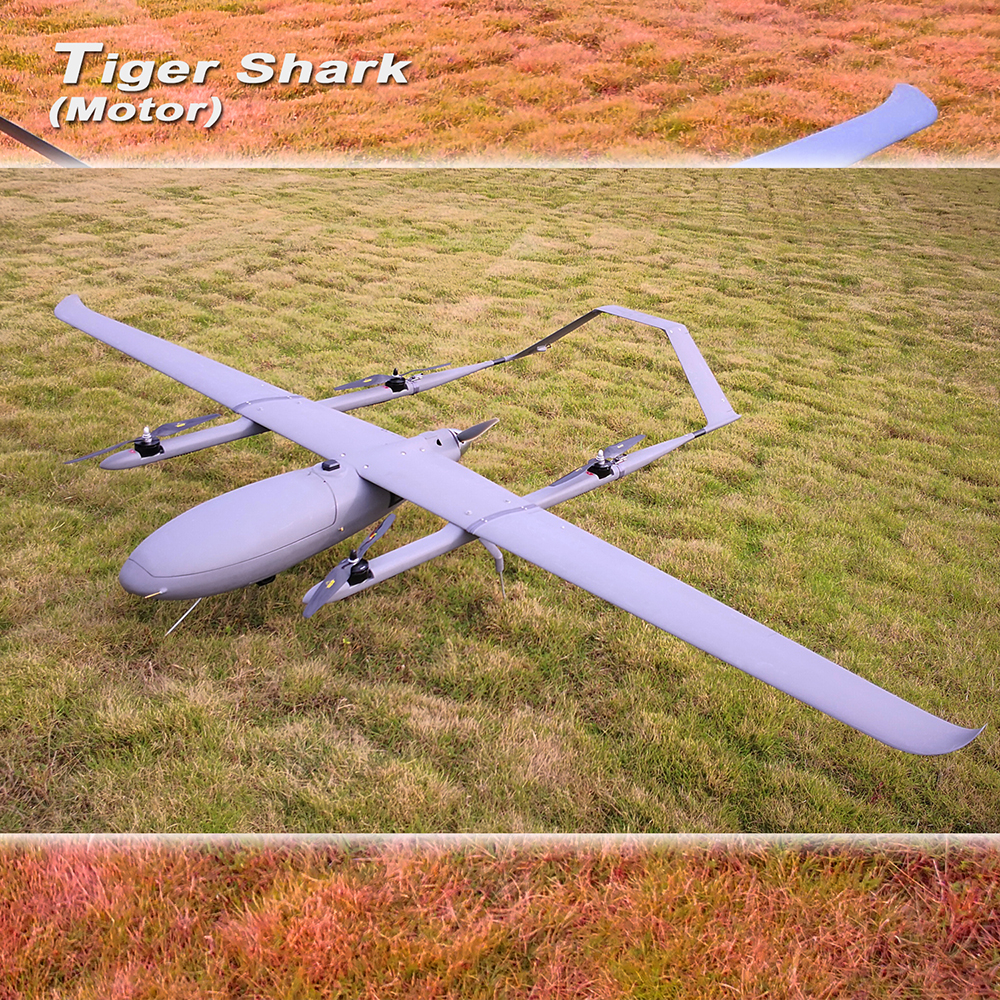

Tiger Shark VTOL 3500mm electric airframe

  • Brand: SparkleTech
  • Weight: 61.5KG
  • Reference: S1050M
$12,920.00

Note: THE WEIGHT ABOVE IS THE ACTUAL SHIPPING VOLUME WEIGHT

Construction :

- Complete composite construction using carbon fibre and Kevlar on a rigid honeycomb core structure
- New fuselage design concept that conceals all avionics cables
- Robust structure engineered to industrial quality

- Dual battery system to maximize safety
- Compatible with PC-based, full-featured, open source autopilot system
- Easy to assemble in the field, no need for expert skill
- VTOL to suit virtually any mission



Quantity
Share

Aviation aircraft fixed wing drones professional long distance camera uav survey vtol drone

Product Description:

Tiger Shark Motor VTOL has been developed based on the success of the legendary Eagle Hero which has accomplished numerous tough missions all over the world. With our innovative design approach and abundant experience, not only have we achieved high efficiency, low stall speed, extended cruise window and large payload capacity, we have also incorporated smart features like detachable component bays – all driven by an all electric propulsion system. The result is less energy expended and more time in the air.

The avionics system has undergone further significant improvement. Cables are shielded and concealed to minimize electromagnetic interference and to prevent tampering.

The quad-rotor technology is now very mature. It enables vertical take-off and landing and eliminates the restriction of runway requirement in the field. The quad-rotor also provides maximum fail safe protection against any malfunctioning situation during mission.



Specification:



Wing Span

3500mm

MTOW

22kg

Endurance

> 1.5 ~ 2 hours (1.5kg payload)

Mission range

180 +km

Cruise speed

26m/s

Stall speed

19m/s

Maximum speed

33m/s

Service ceiling

4000m

Takeoff / Landing

VTOL

Glide ratio (L / D)

20:1~22:1

TS





 Packing List:

TS airframe parts

Packing:

We have two packaging options for clients to choose. One is the case made with full composite material same as the airframe. Detachable roller made it easily moving round freely. There is a charge for this box. Of course, we also have free packaging option, carton packing.



EA&TS packing
