1.Digital servo provides higher precision and better fixed force.
2.Comes with metal gear,long service life.
3.This is digital motors,suitable for RC Robot UAV Airplane.
4.With high quality ball bearing,large torque,long service life and good performance.
PWM Pulse signal
Voltage TTL-Level:HIGH:min.3.3V,max VCC
TTL-Level:LOW:min.0.0V,max. 1.5V
Travel range:900-2100us
Travel angles-50°/0°/+50°:1000us/1500us/2000us
Resolution:<2us
Material Performance
Shell material: Aluminum alloy
Motor Type:Coreless
Gear material:Metal
Position sensor:potentiometer
Angle feedback: Options
Wire gauge:26AWG

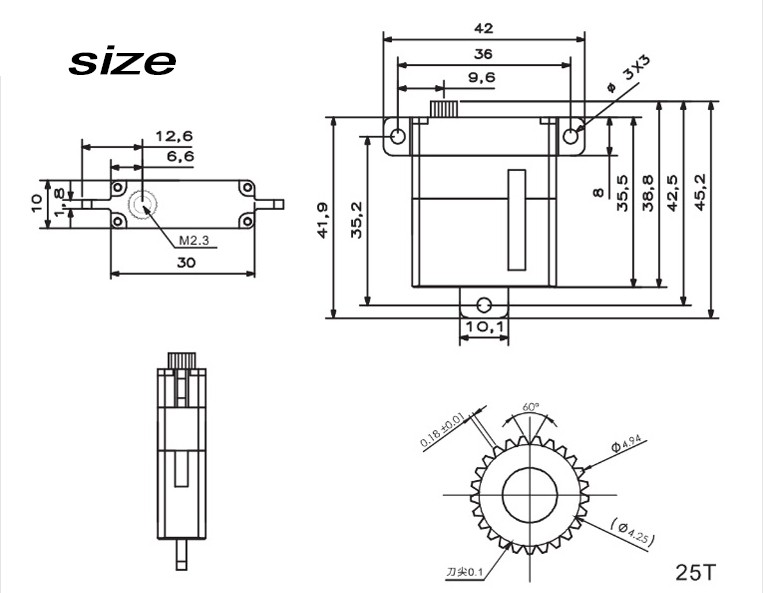

Size:30*10*35.5mm
Weight:26g
Parameter specification
Nominal voltage:
DC7.4V
Operating voltage range:
DC4.8V-8.4V
Locked-rotor torque:
9Kg.cm 7.4V
Rated torque:
2.3Kg.cm 7.4V
Locked-rotor current:
1.2A
Rated current:
0.35A
No-load speed:
435°/s
Rated speed:
330°/s
Route:
±50° 1000-2000us
Working temperature:
-10℃——+55℃
Storage temperature:
-20℃——+65℃
