EOT-140A3 UAV Gimbal Camera

  • Reference: EOT-140A3
$19,925.00

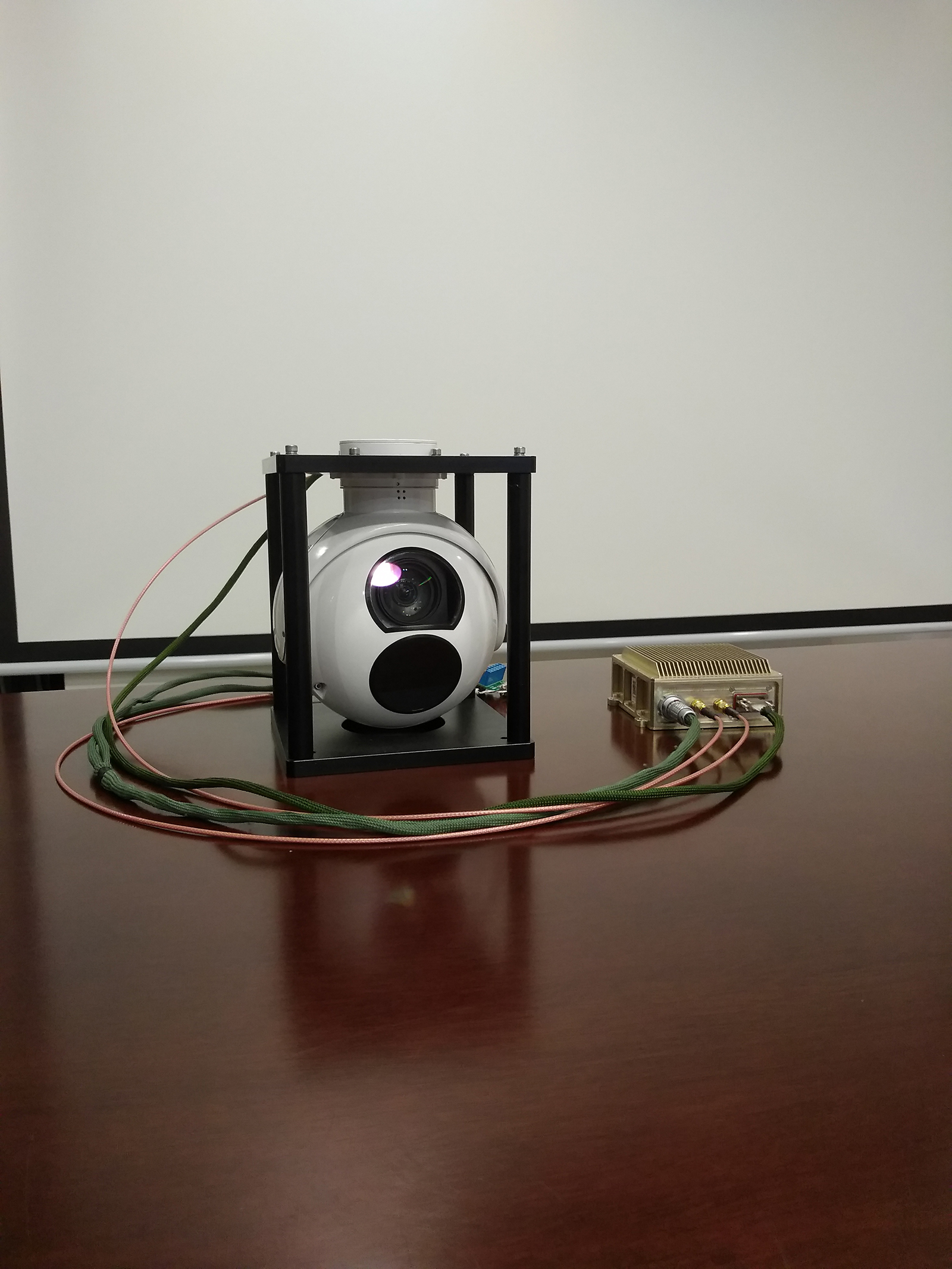

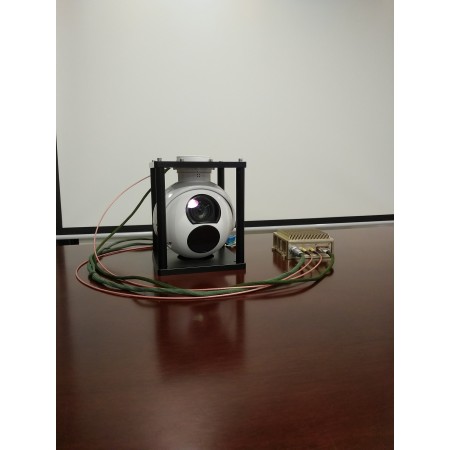

EOT-140A3 electronic-optical turret is designed to be installed on UAV to

complete surveillance, reconnaissance, and target acquisition missions.

Quantity
Share

EOT-140A3 has the following functions:

1) Providing the infrared and TV camera video.

2) Line of sight gyro-stabilized.

3) Target auto-tracking during day and night.

4) Auto scan.

5) GEO location of target.

6) Online maintenance such as zero adjustment, line of sight adjustment and

gyroscopic drift correction.



3 Specifications

3.1 Stabilized Platform

1) Platform type:2-axis

2) Azimuth: n×360º

3) Elevation: -120º~+90º

4) Angular rate: ≥90º/s

5) Angular acceleration: ≥90º/s2

6) Angular position accuracy: ≤0.1°(1σ)

7) Line of sight stabilization: ≤50μrad(1σ)

3.2 Color TV camera

1) Imager: 1/2.8″sony CMOS

2) Detector Type: 1920×1080

3) Fields of view:

Optical continuous:63.7°~2.3°(H)

4) Operating range

visibility 20km, temperature 25℃, humidity 80%



3.3 Uncooled infrared

1) Detector Type: 640×512 un-cooled Vox FPA

2) Spectral Range: 8~14μm

3) Pixel Pitch: 17μm×17μm

4) NETD: ≤50mK @ 300K

5) Fields of view:13.7º×11º(H×V)

6) Operating range

visibility 10km, temperature 25℃, humidity 80%



3.4 Interface

1) Video: HD-SDI/30p

2) Data format: RS-422 (baud rate 38400)

3.5 Power

1) Supply: DC+12.8V~+25.2 V

2) Consumption: 20W(50W max)

3.6 Physical Dimensions

1) Turret Weight: ≤1.8kg

2) Video tracker: ≤0.35kg



3.7 Environmental conditions

1) Operating temperature:-20℃~+60℃

2) Storage temperature:-50℃~+70℃;
