Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure SensorPower input voltage/rated input current: 4.1-5.7 V / 2.5 APower rated output/input power: 14 WUSB port input voltage/rated input current: 4-5.7 V / 250 mAServo rail input voltage: 3.3 V / 5 VNot waterproof. External waterproof protection is neededOperation Temperature: -10 °C / 55 °CCube Orange Housing Material: CNC Aluminum AlloyStandard Carrier Board Housing Material: ABS Molding
Built-in IMU Heating system, allowing flights at extreme temperature (below freezing) Robust DF17 Interface connectors give enhanced drop and shock resistance Airframes: VTOL, Plane, Multicopter, Traditional Heli, Rover, Boat, Sub, General Robotics.

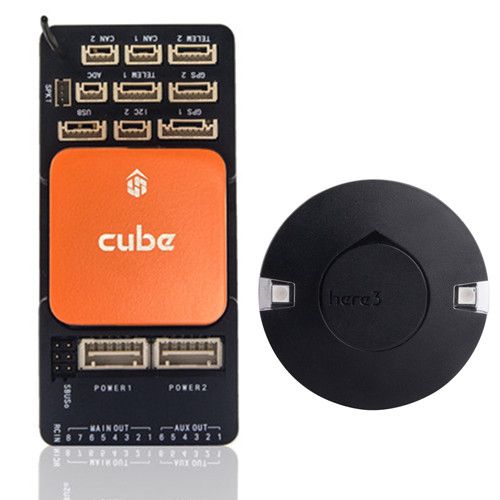

The Cube Orange
Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware. Includes new generation of more powerful H7 processor, with stronger performance, faster processing, increased security with built-in triple-redundant sensors, temperature control shock absorption IMU. With the help of flight software, Cube Orange can completely fly any remotely controlled aircraft, helicopter or multi-rotor vehicle and turn it into a more professional UAV platform.
ADS-B Carrier Board
A standard carrier board with an integrated 1090MHz ADS-B receiver allowing the software to receive information about the location of manned aircraft in the area. Receives information such as position, altitude, speed, etc, which can all be viewed in Mission Planner. Through settings, you can optionally set up your cube to allow the vehicle to automatically avoid aircraft that are within an exclusion zone set by you.
