Note: THE WEIGHT ABOVE IS THE ACTUAL SHIPPING VOLUME WEIGHT
Features :
(1) Full honeycomb core / composite material for entire airframe
(2) On board front camera dome provide the best FPV features.

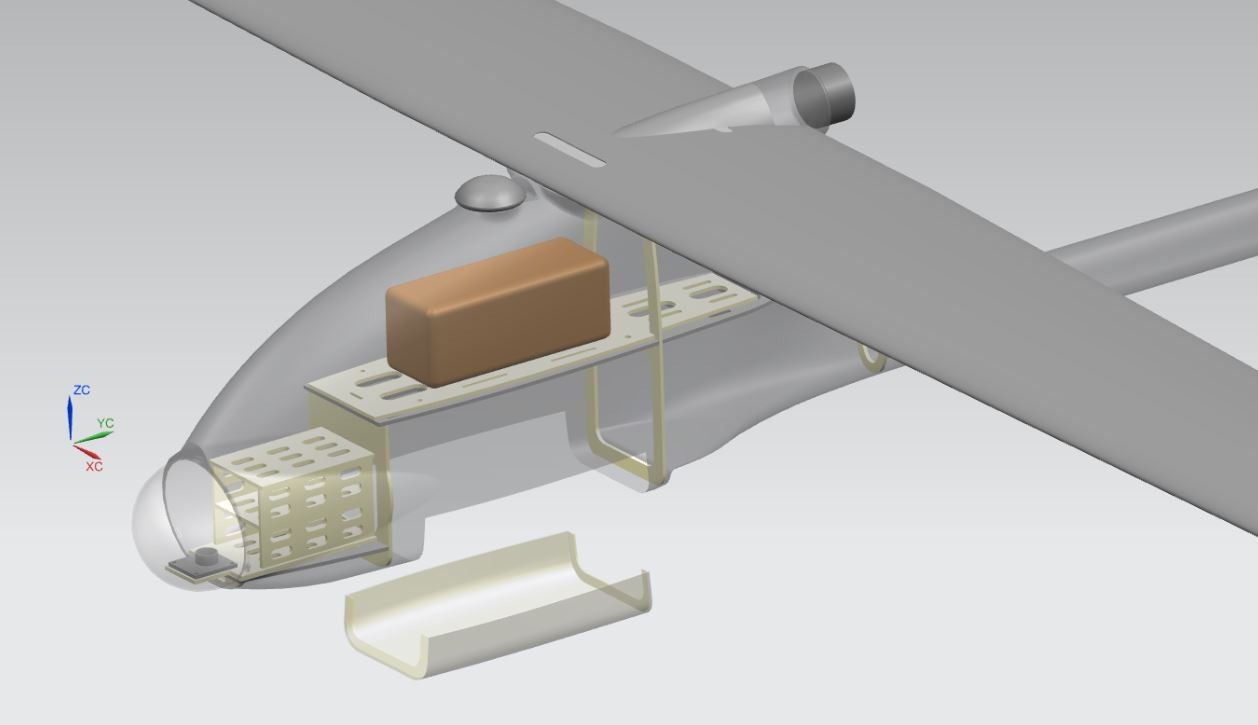

(3) Belly plug in equipment bay swap just a second.
(4) Large front camera dome up to 90mm diameter

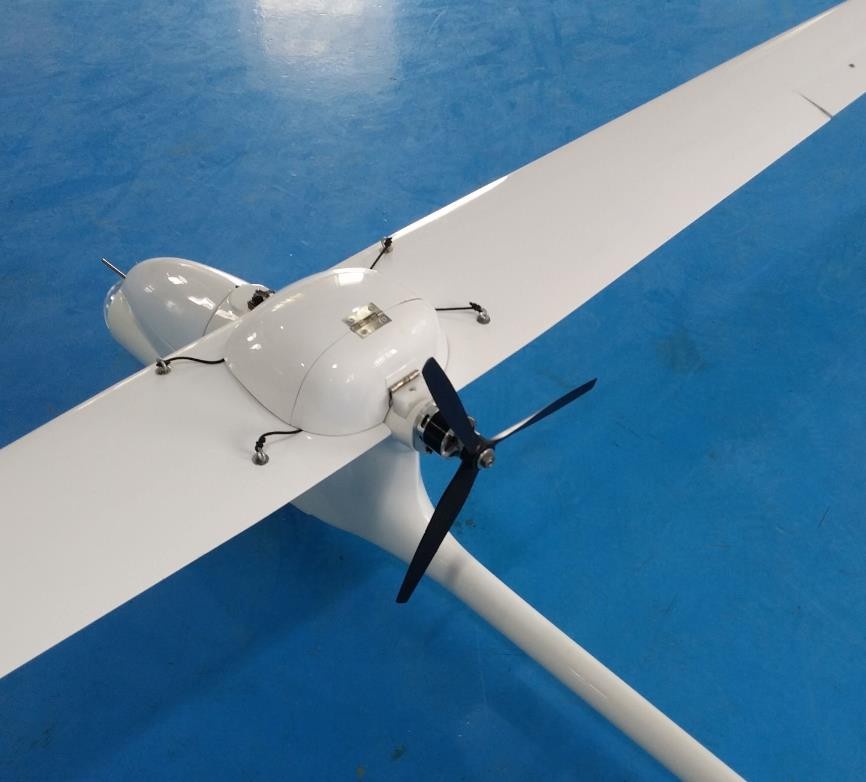

(5) Air sensor installed on top of nose dome.
(6) Both antenna of data link, video transmission installed at the far end of tail and nose to eliminate the interference.
(7) On board huge battery compartment holding up to 2 packs of 12000mAh 6S Lipo to achieve 8 hours endurance.
(8) 3 type of launching methods are available, including hand launch, catapult and runway.
(9) Standard flying weight of 4.7kg with 12000mAh 6S Lipo on board for 3 hours endurance.
(10) Max payload of 1kg (MTOW 7kg) is available for your equipment.
Specification:
Wing Span
3000mm
MTOW
7kg
Endurance
> 1.5 ~ 3 hours (1kg payload)
Mission range
270 +km
Cruise speed
18m/s
Stall speed
13m/s
Maximum speed
28m/s
Service ceiling
< 4000m
Takeoff / Landing
Hand launch, catapult
Glide ratio (L / D)
25:1~28:1
