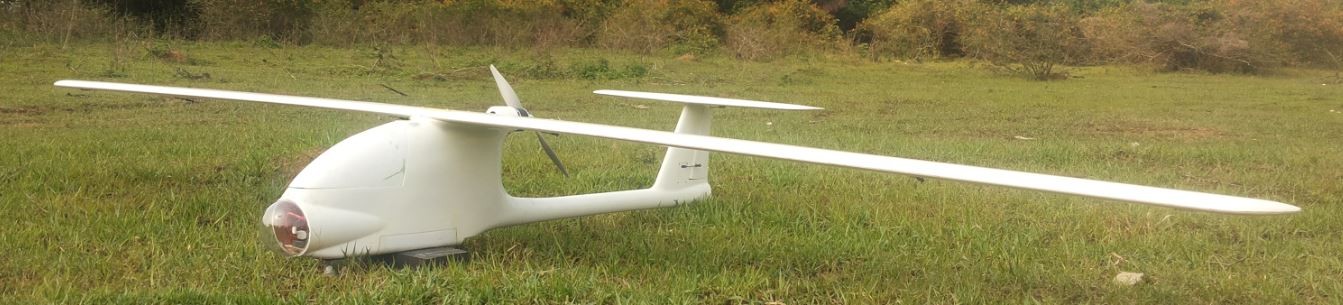

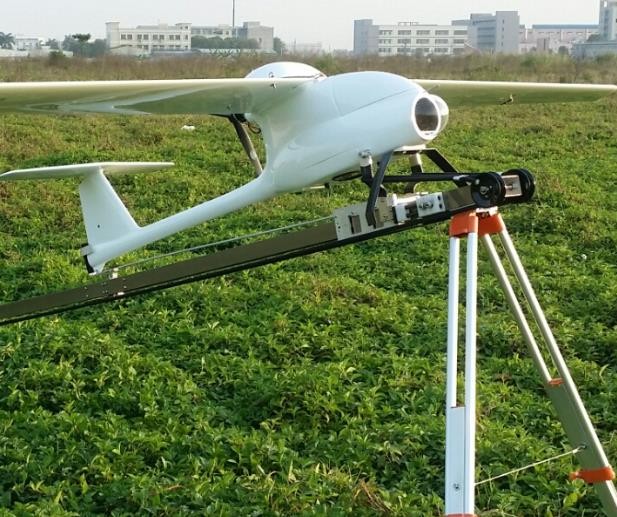

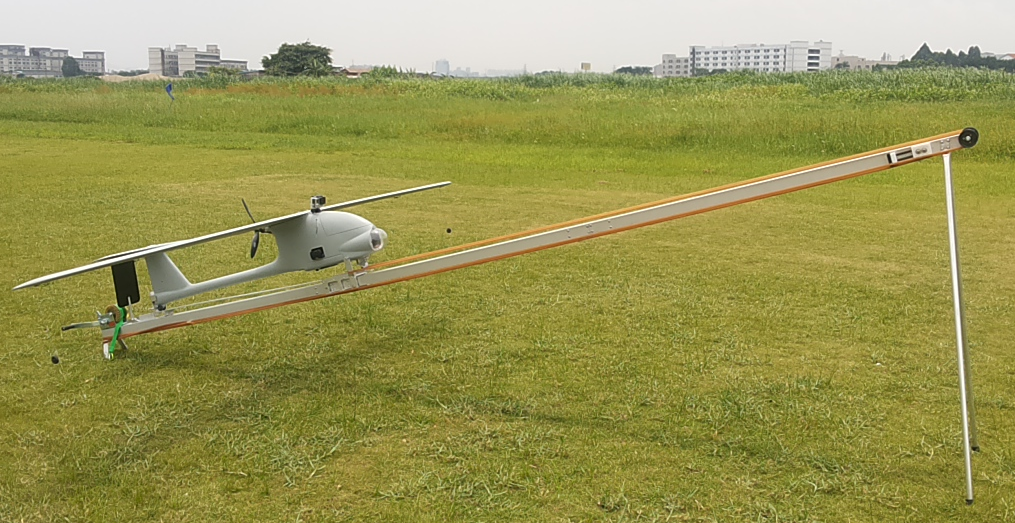

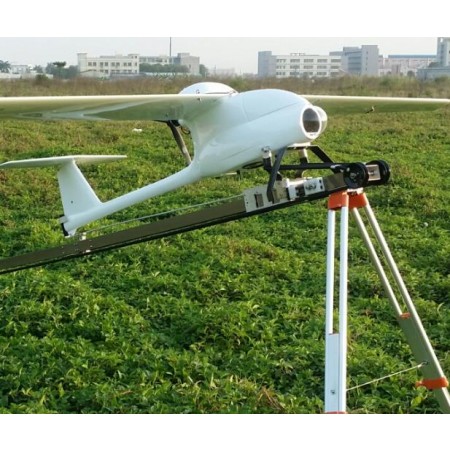

Ranger UAV launch by catapult

  • Brand: SparkleTech
  • Weight: 25KG
  • Reference: Ranger
$1,385.00

Note: THE WEIGHT ABOVE IS THE ACTUAL SHIPPING VOLUME WEIGHT

Performance

Parameter Data
Endurance (6S, 12Ah x 1 pack), MTOW:4.8kg 1.5 hours
Cruise speed 50km/h
Max speed 120km/h
Stall speed 40km/h
Celling <3000m
Quantity
Share

Features :

(1) Full honeycomb core / composite material for entire airframe

(2) On board front camera dome provide the best FPV features.

(3) Belly plug in equipment bay swap just a second.

(4) Large front camera dome up to 90mm diameter

(5) Air sensor installed on top of nose dome.

(6) Both antenna of data link, video transmission installed at the far end of tail and nose to eliminate the interference.

(7) On board huge battery compartment holding up to 2 packs of 12000mAh 6S Lipo to achieve 8 hours endurance.

(8) 3 type of launching methods are available, including hand launch, catapult and runway.

(9) Standard flying weight of 4.7kg with 12000mAh 6S Lipo on board for 3 hours endurance.

(10) Max payload of 1kg (MTOW 7kg) is available for your equipment.



Specification

Wing Span

3000mm

MTOW

7kg

Endurance

> 1.5 ~ 3 hours (1kg payload)

Mission range

270 +km

Cruise speed

18m/s

Stall speed

13m/s

Maximum speed

28m/s

Service ceiling

< 4000m

Takeoff / Landing

Hand launch, catapult

Glide ratio (L / D)

25:1~28:1
