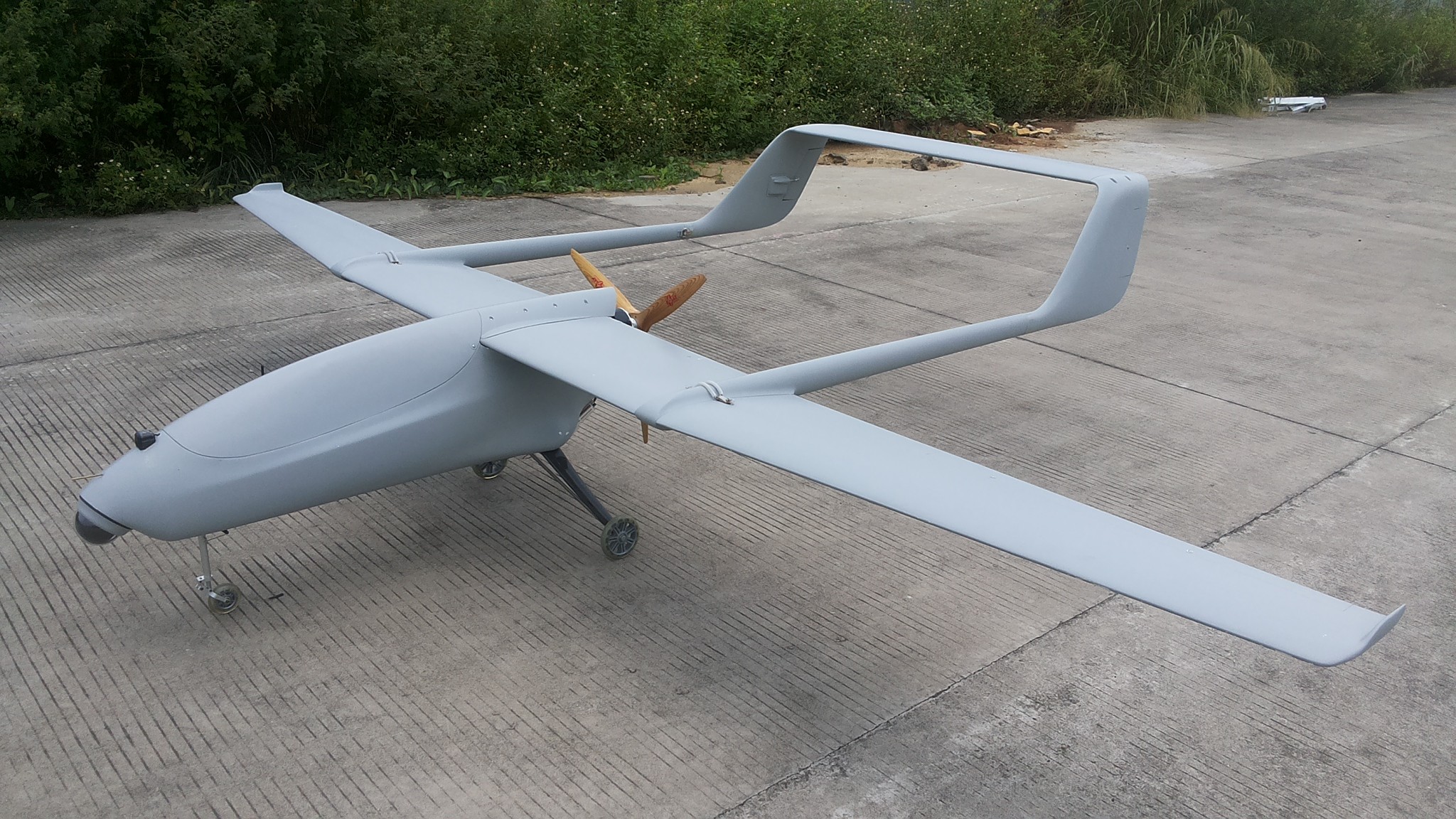

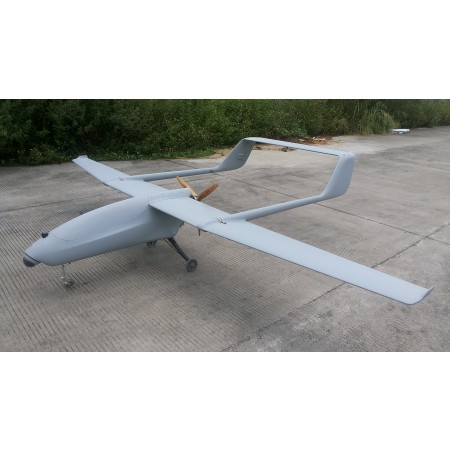

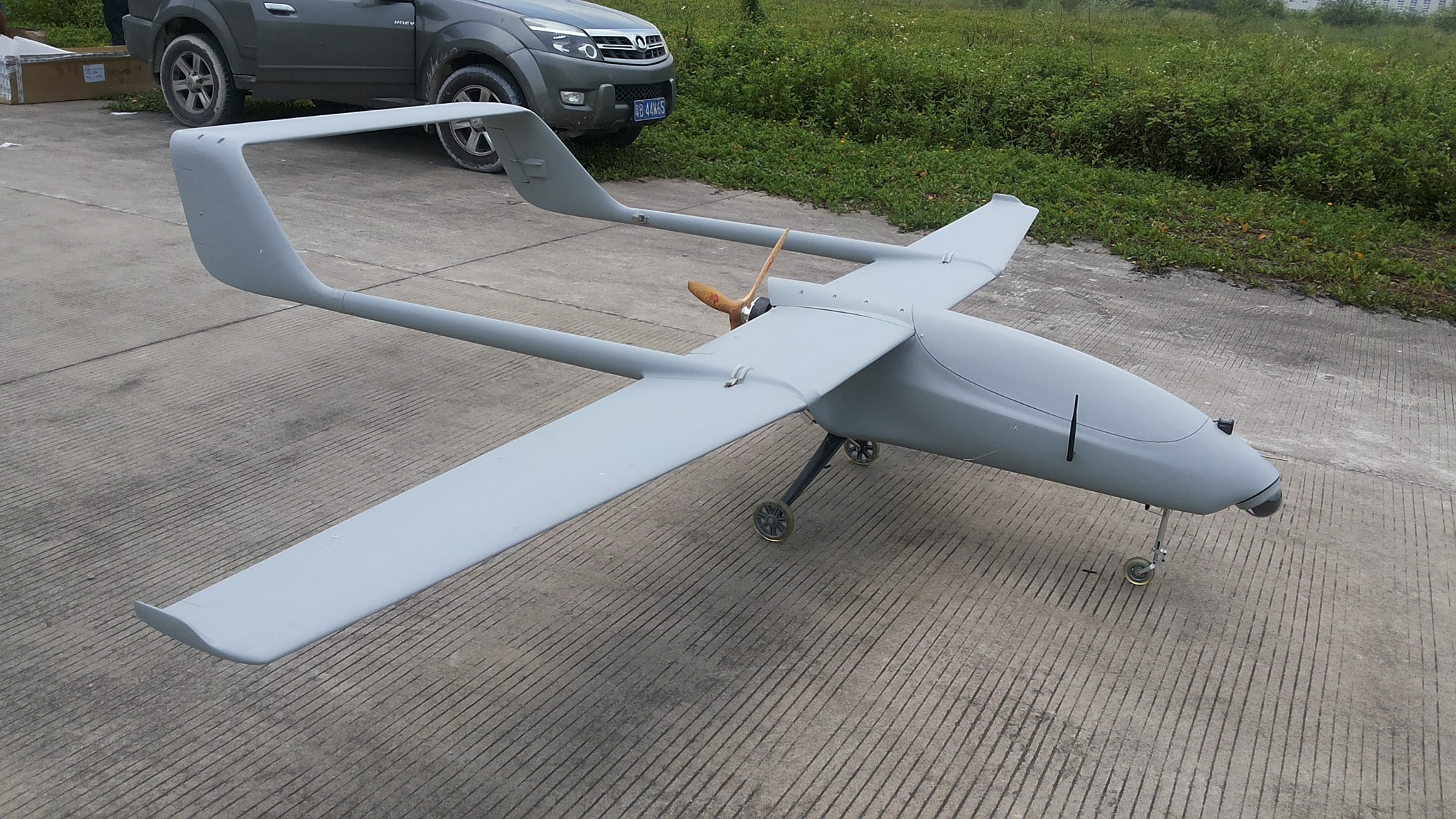

4m Eagle Eye UAV electric version

  • Weight: 120KG
  • Reference: S1001
$6,730.00

Note: THE WEIGHT ABOVE IS THE ACTUAL SHIPPING VOLUME WEIGHT

Performance

Item Parameter
Cruise (12cell 12Ah x 1 pack), Takeoff weight:25Kg 35mins
Cruise speed 50km/h
Max Speed 120km/h
Runway length 20-50m
Celling <500m
Quantity
Share

Specification

Item Parameter
MTOW 35Kg
Min weight ( No payload, battery x 1 pack) 20Kg
Wing Span 4,000mm
Length 3,020mm
Height 920mm
Wing Area 110.60dm2
Max payload 20kg
Motor 11,000w
Battery 12 cell (44.4v)
Nose camera dome Included
  • Made of Honeycomb core sandwich and carbon fibre
  • Powered by zero-emission brushless DC motor
  • Strong structure with industrial specification
  • 2+ hour flight time possible with additional battery pack
  • Compatible with full-featured PC-based autopilot system
  • Generous room for mission-specific on-board equipment
  • Simple to assemble, no need for expert skills
  • Ready to launch in just minutes

Reconfigurable battery system to suit specific application
