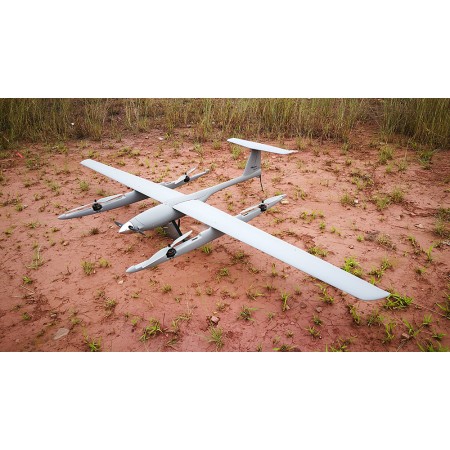

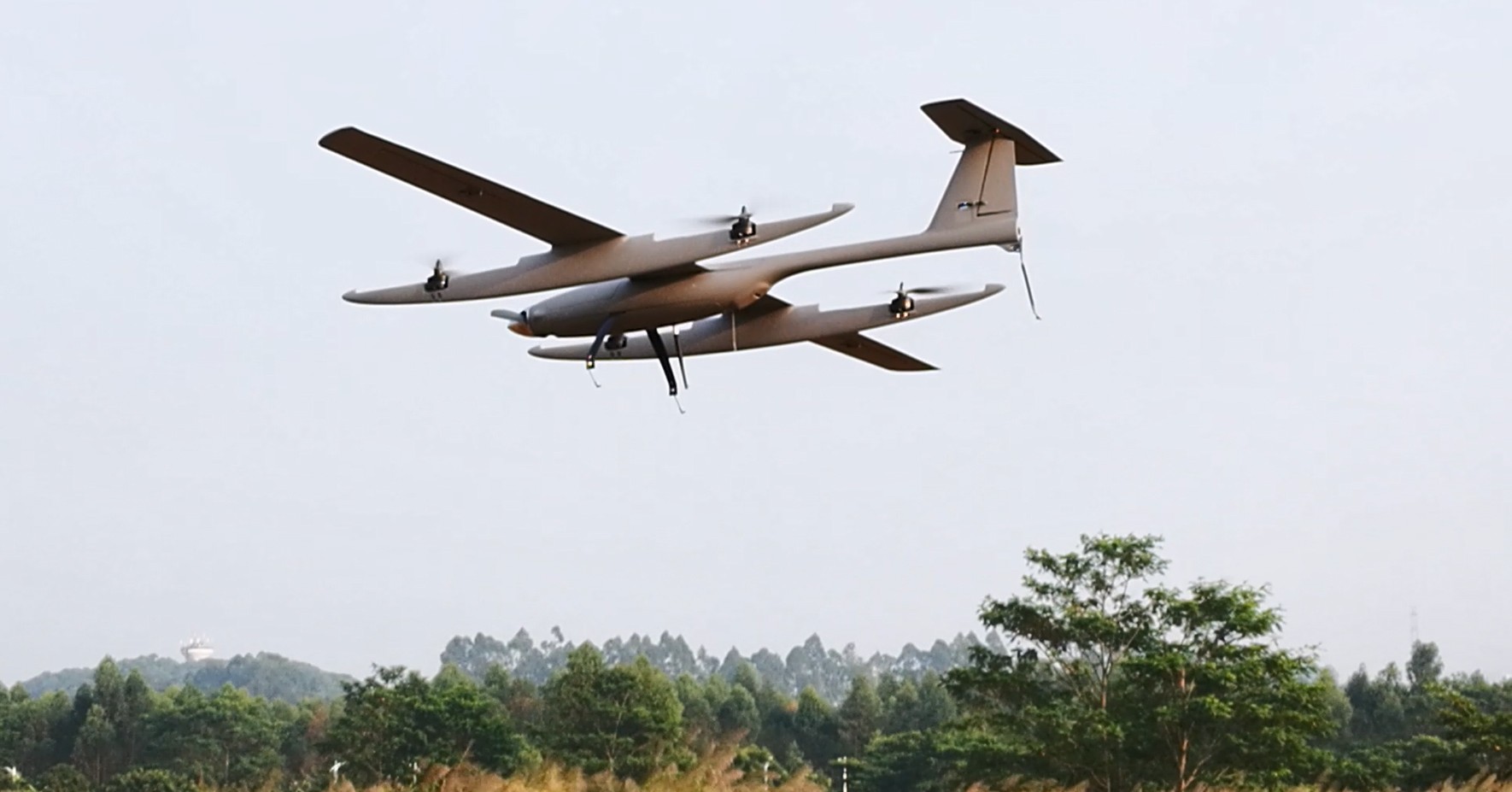

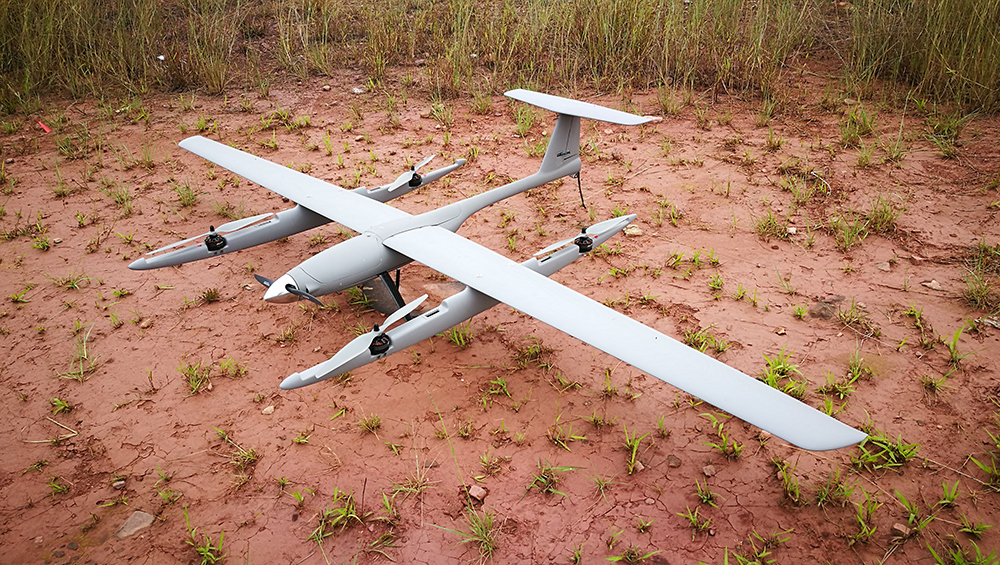

Dragon VTOL Electric Version

  • Weight: 25KG
  • Reference: Dragon
$7,620.00

Note: THE WEIGHT ABOVE IS THE ACTUAL SHIPPING VOLUME WEIGHT

Performance

Parameter Data
Endurance (MTOW 14kg) 2 hours
Cruise speed 83km/h
Max speed 110km/h
Stall speed 48km/h
Runway 3m x 3m
Quantity
Share

Specification

Parameter Data
MTOW 14Kg
Takeoff (w/o battery, payload) 7.0Kg

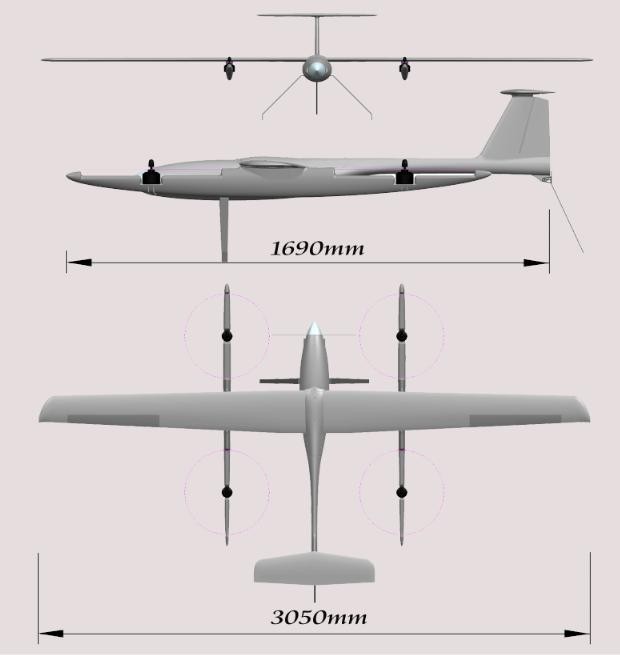

Wingspan 3,050mm
Length 1,690mm
Height 300mm
Wing area 70dm2
Max payload (included battery) 1.5kg
Motor 500kv
Battery (LiPo 10Ah x 1, Li-ion 42Ah x 1) 6 Cells
Suitable camera (A7R) No included

Full composite, carbon fiber / Honeycomb core structure
- Electric motor power
- Tough structure achieve industrial standard
- Dual battery power maximize the safety goal
- Compatible with full-featured PC-base, open source autopilot system
- Easy for assemble in the field, no need for expert stills
- VTOL suit for any mission
