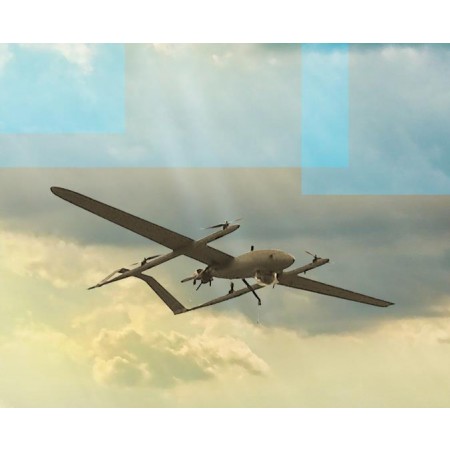

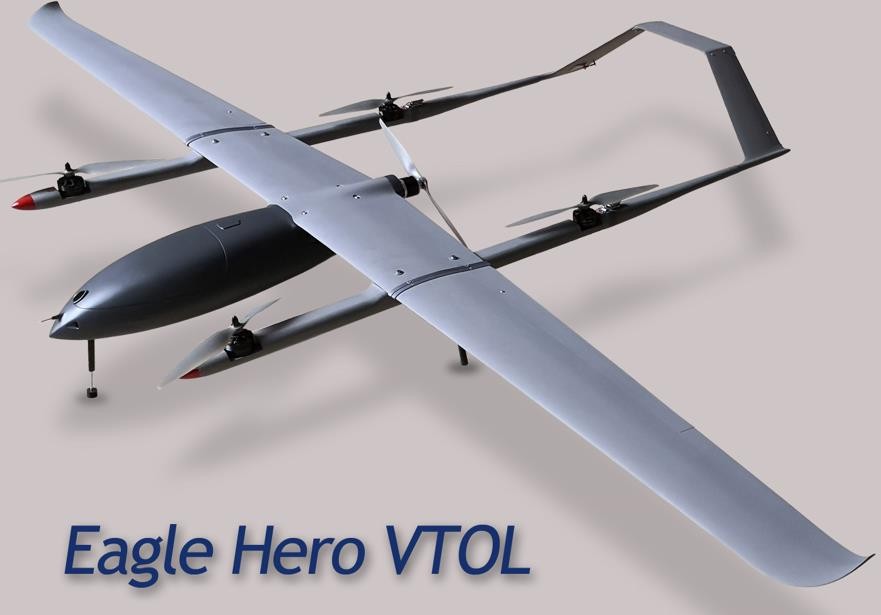

Eagle Hero Bundle system

  • Weight: 33KG
  • Reference: S1040B
$30,500.00

Note: THE WEIGHT ABOVE IS THE ACTUAL SHIPPING VOLUME WEIGHT

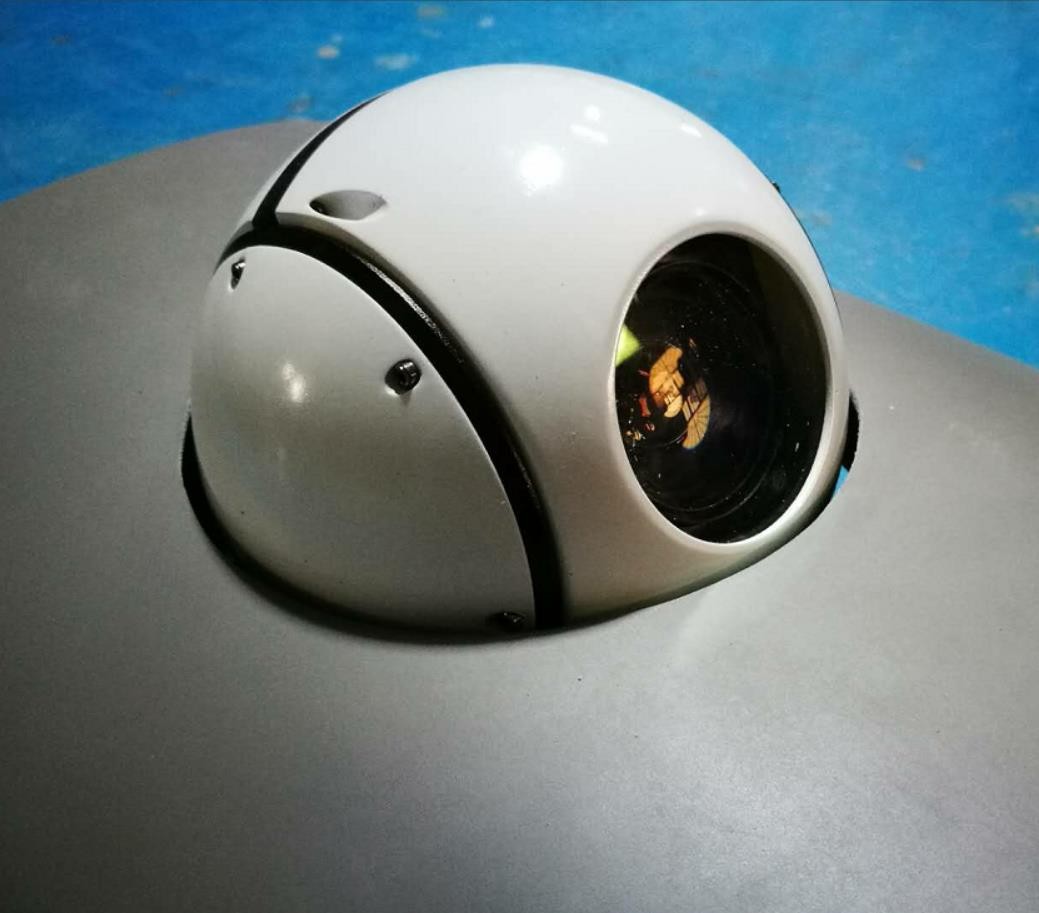

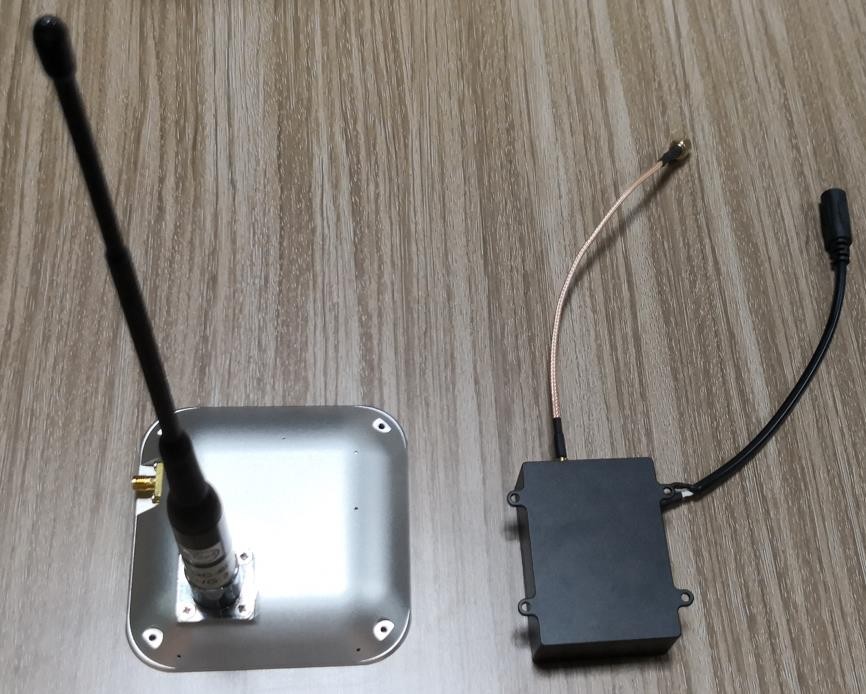

Bundle system is well installed with flight controller, avionics, telemetry and gimbal. System is ready to execute mission immediately.

Quantity
Share

Product Description:

  • Complete composite construction using carbon fibre and Kevlar on a rigid honeycomb core structure
    - New fuselage design concept that conceals all avionics cables
    - Robust structure engineered to industrial quality
    - Dual battery system to maximize safety

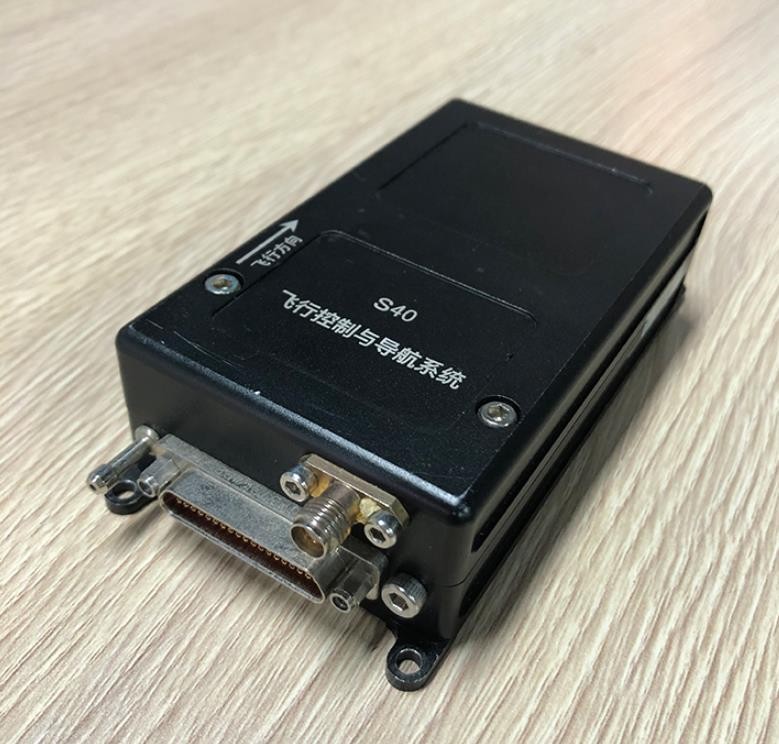

  • The S40  (cost- effective), flight control and navigation system, is designed for small size conventional fixed- wing, vertical take- off and landing fixed- wing, tilt - rotor  aircraft, with integrated flight control computer and micro- integrated navigation system (GPS/MINS).

Specification:

Wing Span 3500mm
MTOW 18kg
Endurance >2 hours(1kg payload)
Mission range 180+ km
Cruise speed 24m/s
Stall speed 13m/s
Maximum speed 35m/s
Takeoff/Landing VTOL
Glide ratio(L/D) 25:1~28:1

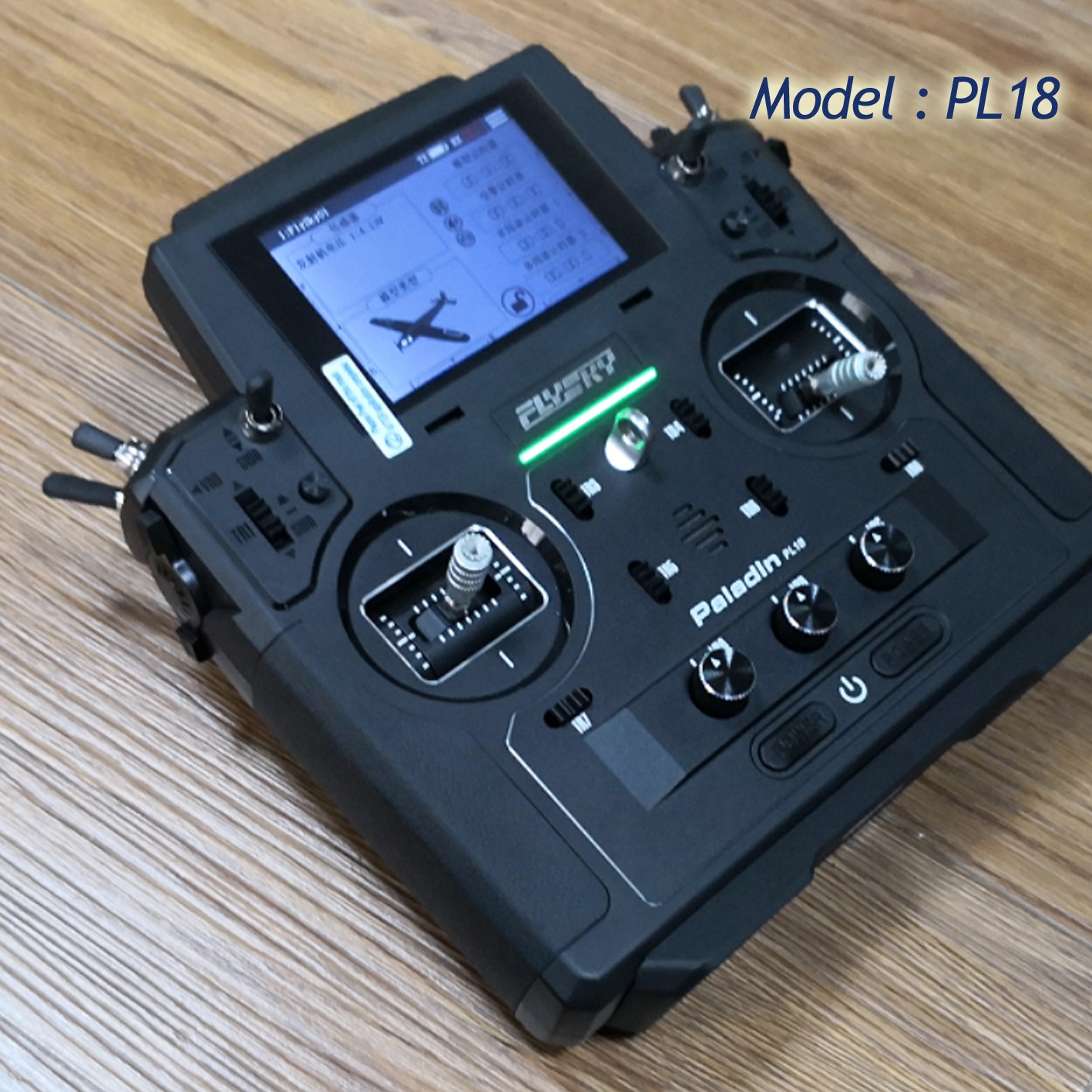

Bundle system included :

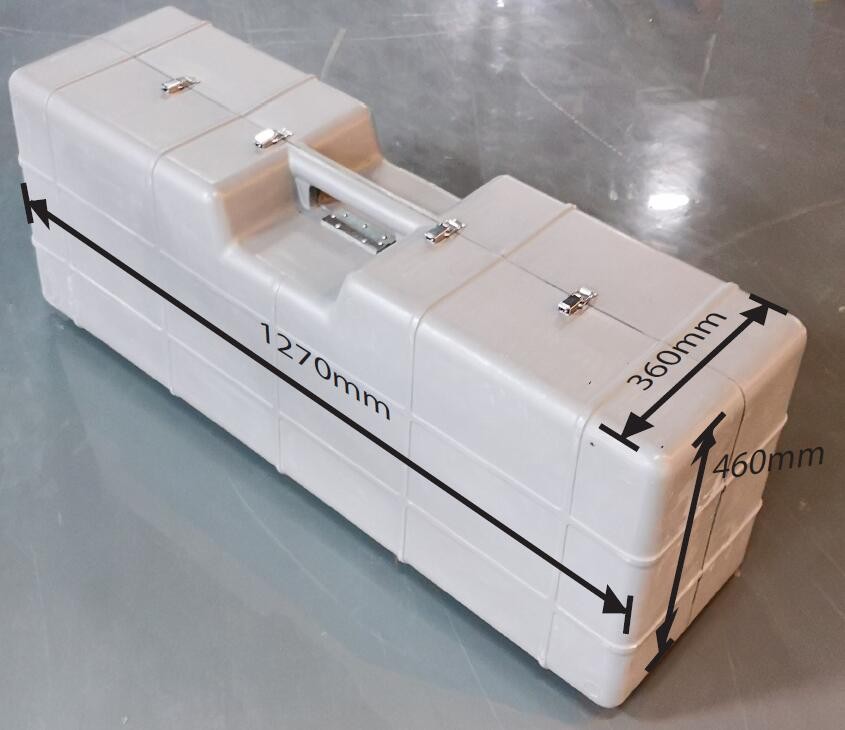

Packing

Certificate:

Exhibition:

Paying&Transportation:
