SP30 equip with dual video input port support FPV camera and HD video transmission system at the same time. Both video transmit to maximum of 50km range simultaneously. The HDMI or SDI video input being supported. TX module link by coaxial cable without power supply requirement.

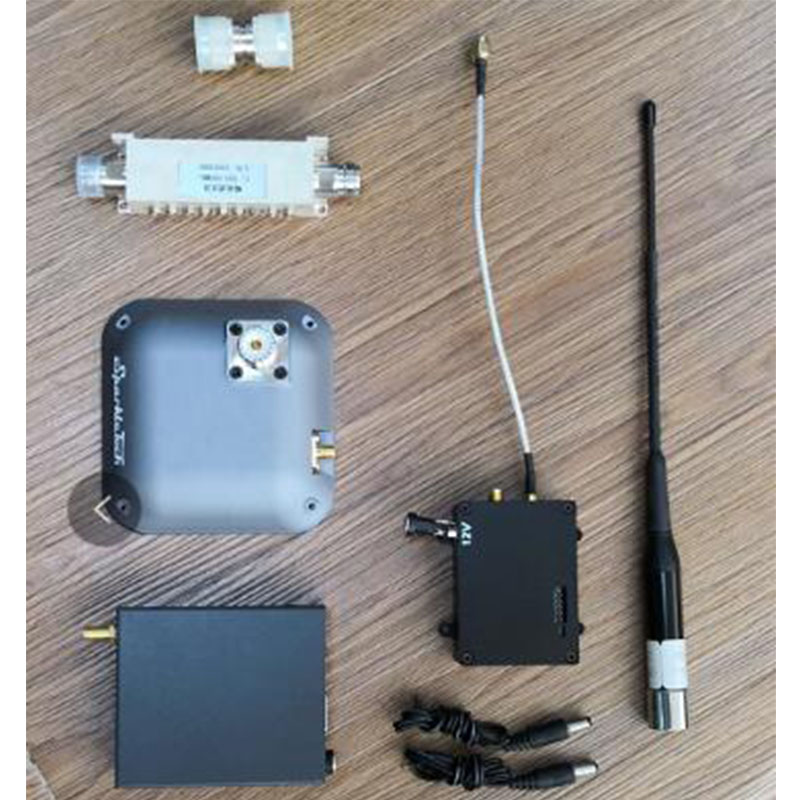

SP30 long range video transmission system
SP30 equip with dual video input port support FPV camera and HD video transmission system at the same time. Both video transmit to maximum of 50km range simultaneously. The HDMI or SDI video input being supported. TX module link by coaxial cable without power supply requirement. Means the TX module are easily move away from the avionics to prevent unnecessary interference in between.
Transmitter
Working voltage V
DC12-18V
Working current A
＜2.5A@DC13V
Frequency output range
300-450MHz 500-600MHz 700-860MHz
RF bandwidth
2/3/4/5/6/7/8MHz
Power output
36dBm
C/N
30dB@35dBm
MER
32
Encryption
AES128bit
Constellation
QPSK/16QAM/64QAM
FEC
1/2,2/3,3/4,5/6,7/8 optional
GUI
1/32,1/16,1/8,1/4 optional
Carrier
2K
Power flatness
Full band<2Db 8MHz<0.5dB
RS232 control interface
Standard RS232 level,19200 ,8,N,1
RS232 data interface
Standard RS232 level, support 1200-230400bps
Receiver
Frequency input range
170-860MHz
Receiving sensitvity
-94-10dB@8MHz/-106dB-20dB@2MHz
Demodulation
COFDM
Decryption
Video output format
1080P@60P、50P、50I、30P、
TX module and decorder weight 313g
TX module with aluminum aerodynamic case perfect for installing at tail plane.
