T100A 3-axis Dual-sensor Laser Rangefinder Object Tracking Gimbal Camera

Version：20201112

1  Introduction

T100A is a powerful 3-axis dual-sensor gimbal camera which integrates a 10X optical zoom camera, a 640x512 HD thermal camera, a 1km range laser rangefinder and a 3-axis platform with high stability and accuracy, working in day and night perfectly. PT100T plays a professional and reliable role along with industrial UAV in activities of patrol and inspection, security, search and rescue, etc. The high-precision laser rangefinder can accurately resolve the longitude, latitude and distance of the object within 1000m. PT100T also has a 1080P FHD real-time visual, infrared video output.

2  Appearance

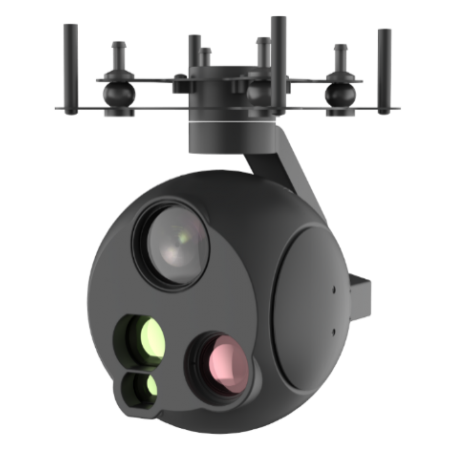

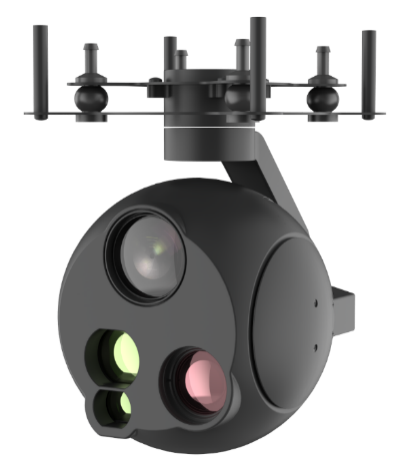

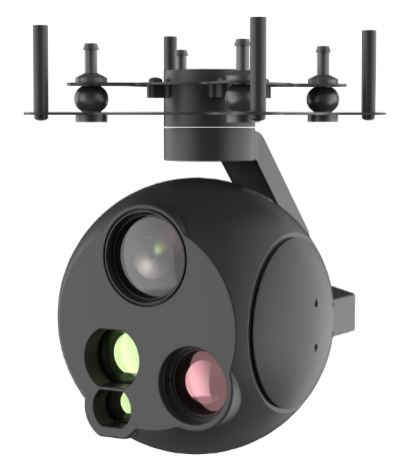

Figure1 Product picture

3  Features

• Get far and near in sight
  30X optical zoom camera makes clear and stable images like it’s close at hand.
• Work in dark
  Professional high sensitivity infrared thermal imaging, object viewing clearly in night, temperature detect precisely and directly.
• All directional object tracking
  Excellent high-precision inertial stabilized platform, 360° continuous view without blocking, optical and infrared dual object tracking.
• Military class working condition
  Military alloy structure and industrial components ensure working in different severe conditions.
• Small and light, but powerful
  Precise optical, mechanical and electronic integration design, it’s smaller and lighter compared with same level products, but more powerful.
• High compatibility with multi-interface
  RS422, RS232, PWM and S.BUS for communication, HDMI, SDI, synchronized 422 and Ethernet for video.

4  Applications

Police service, electrical power-line inspection, security patrol, search and rescue, fire emergency.

5  Technical parameters

6  Dimensions

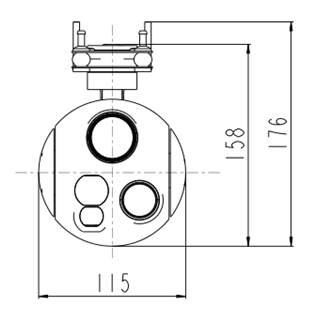

                                  Figure2 Outline dimensions

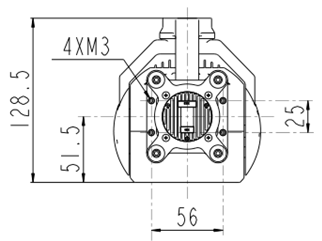

                                Figure3 Installation dimensions
