Flight controller, gimbal & GCS bundle

  • Reference: RP-02 & H12

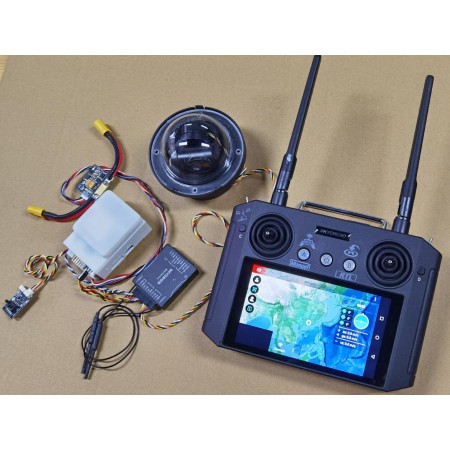

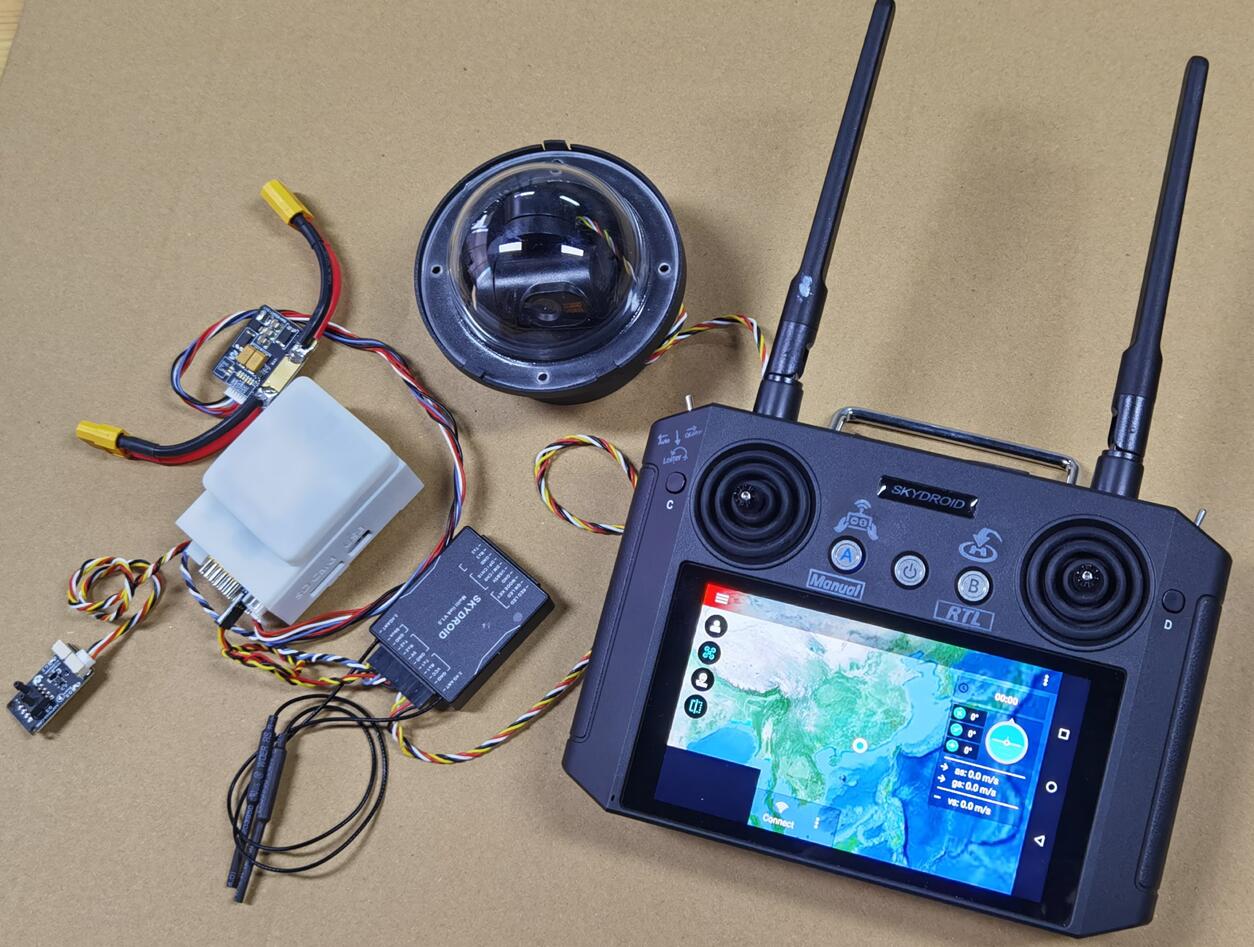

The flight controller bundle package included everything that you need to fly Fixed Wing VTOL.

  1. RP-02 integrate flight controller (Support Ardupilot firmware 4.2.1)
  2. Digital Air speed sensor (CAN)
  3. External compass (CAN)
  4. 14S power module
  5. Telemetry range 5 ~ 10km
  6. FPV Video link 5 ~ 10km
  7. Remote controller (Support mode 1,2,3,4)
  8. 12 channels R/C control

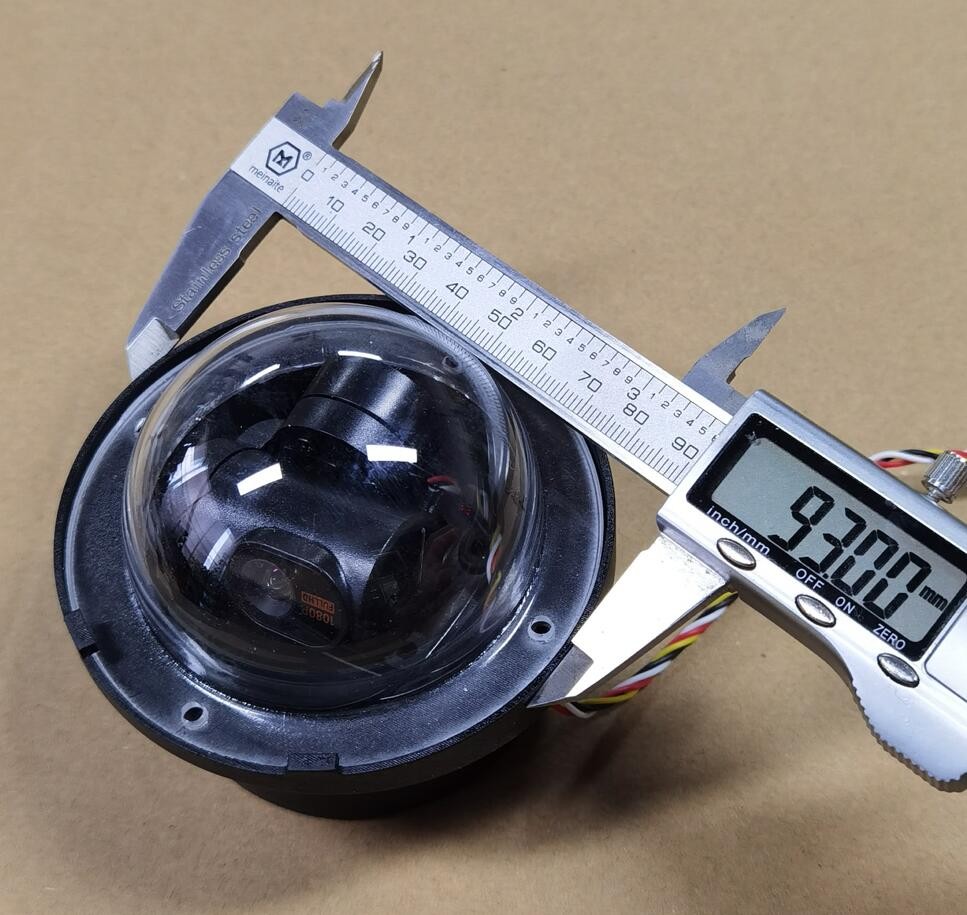

  9. 2-Axis stabilize gimbal (HD video recording on SD card)
  10. Camera Tilting, photo, recording control on GCS

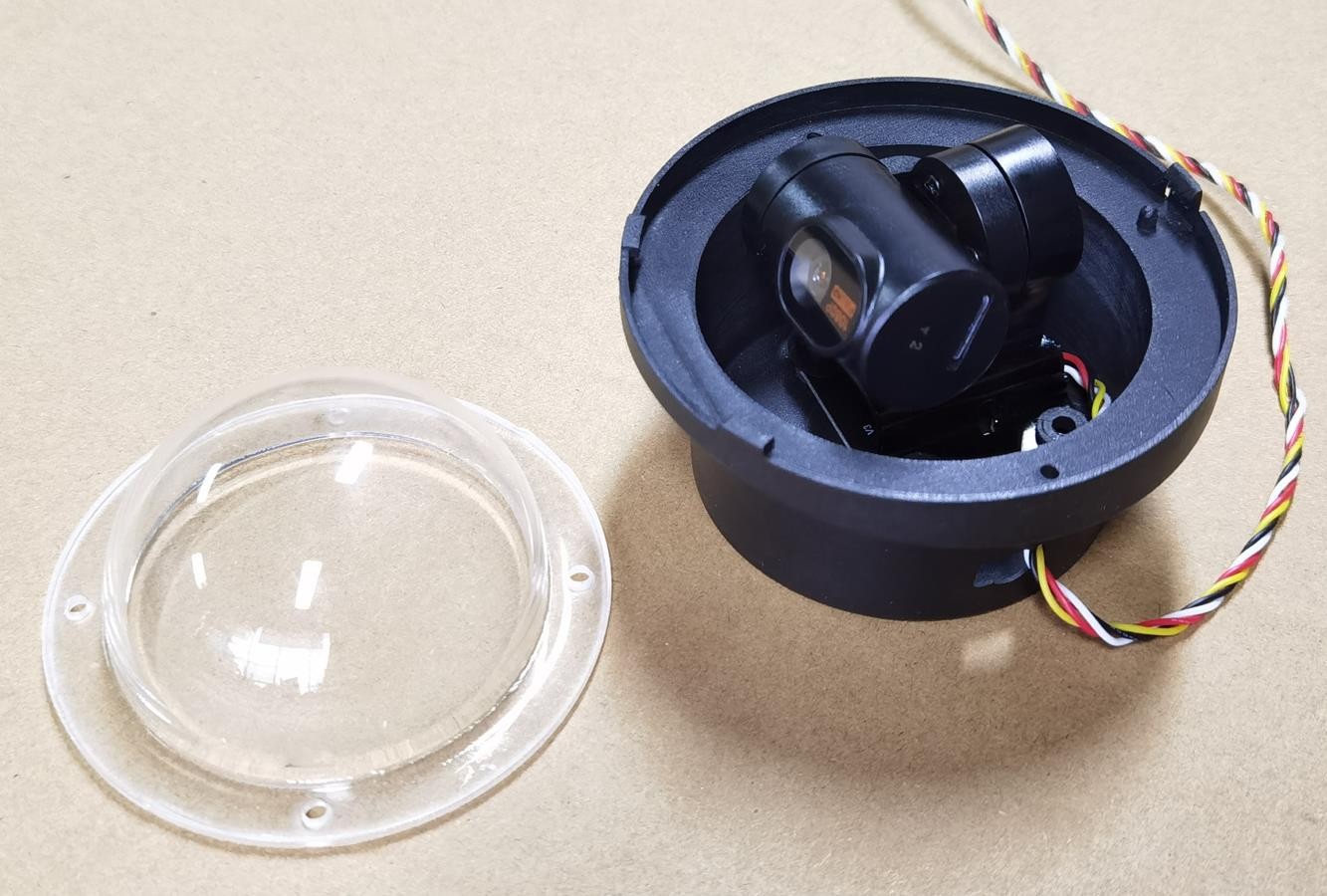

  11. Removable customized camera dome and housing

Product Contruction:

The flight controller fully support by Ardupilot official code latest firmware 4.2.1, can be found in the official code and the firmware library QIOTEKZealotH743, PX4, INAV, BETAFLIGHT firmware at present.

Firmware site, path: /Plane/stable-4.2.1 QioTekZealotH743

Flight video : https://www.youtube.com/watch?v=9rwzLZRl4kc

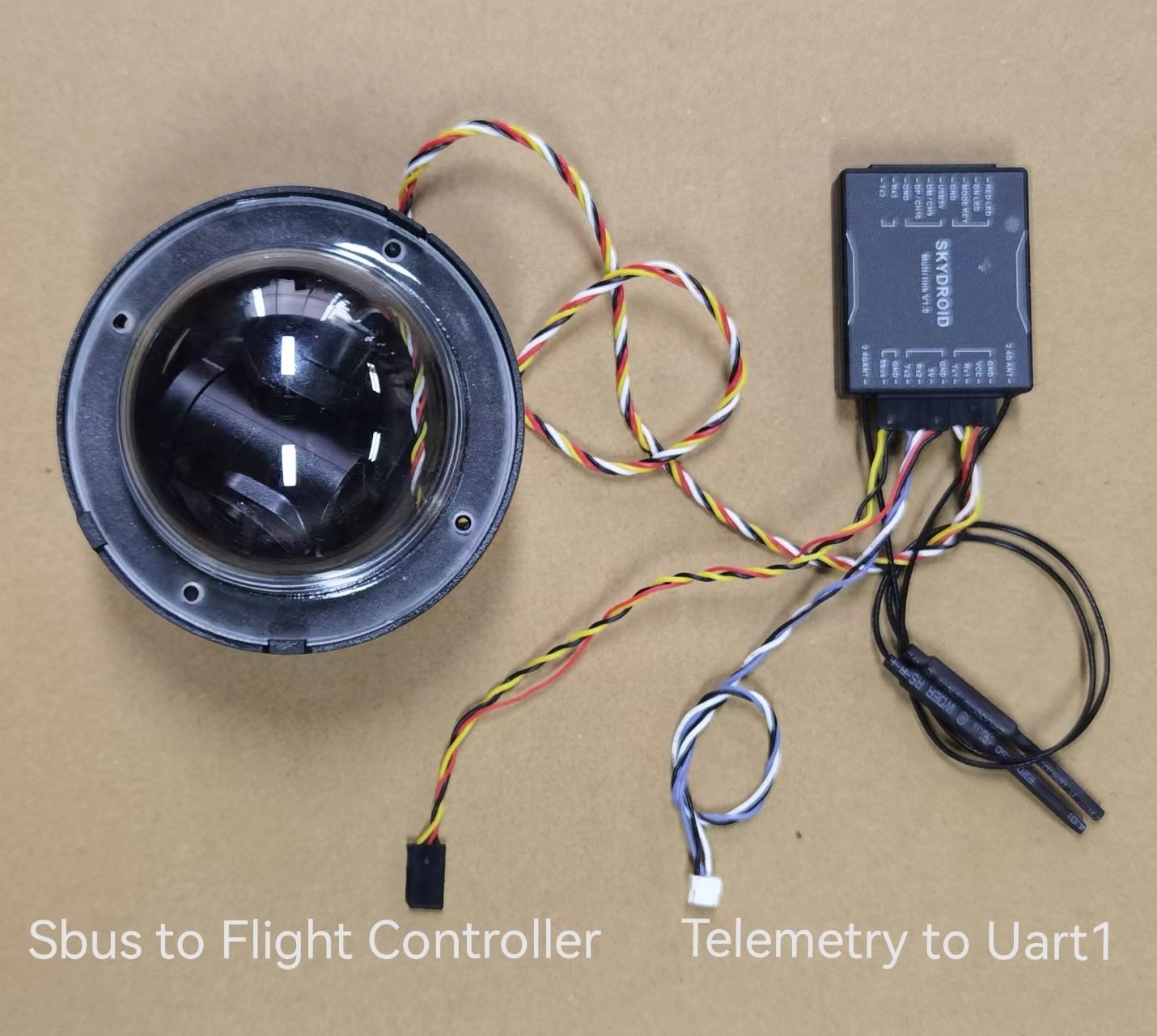

The system connection is tidy and simply. Just power up, load your firmware and parameters, proceed the flight controller calibration then ready to go.
